Small Vision-Based Rover

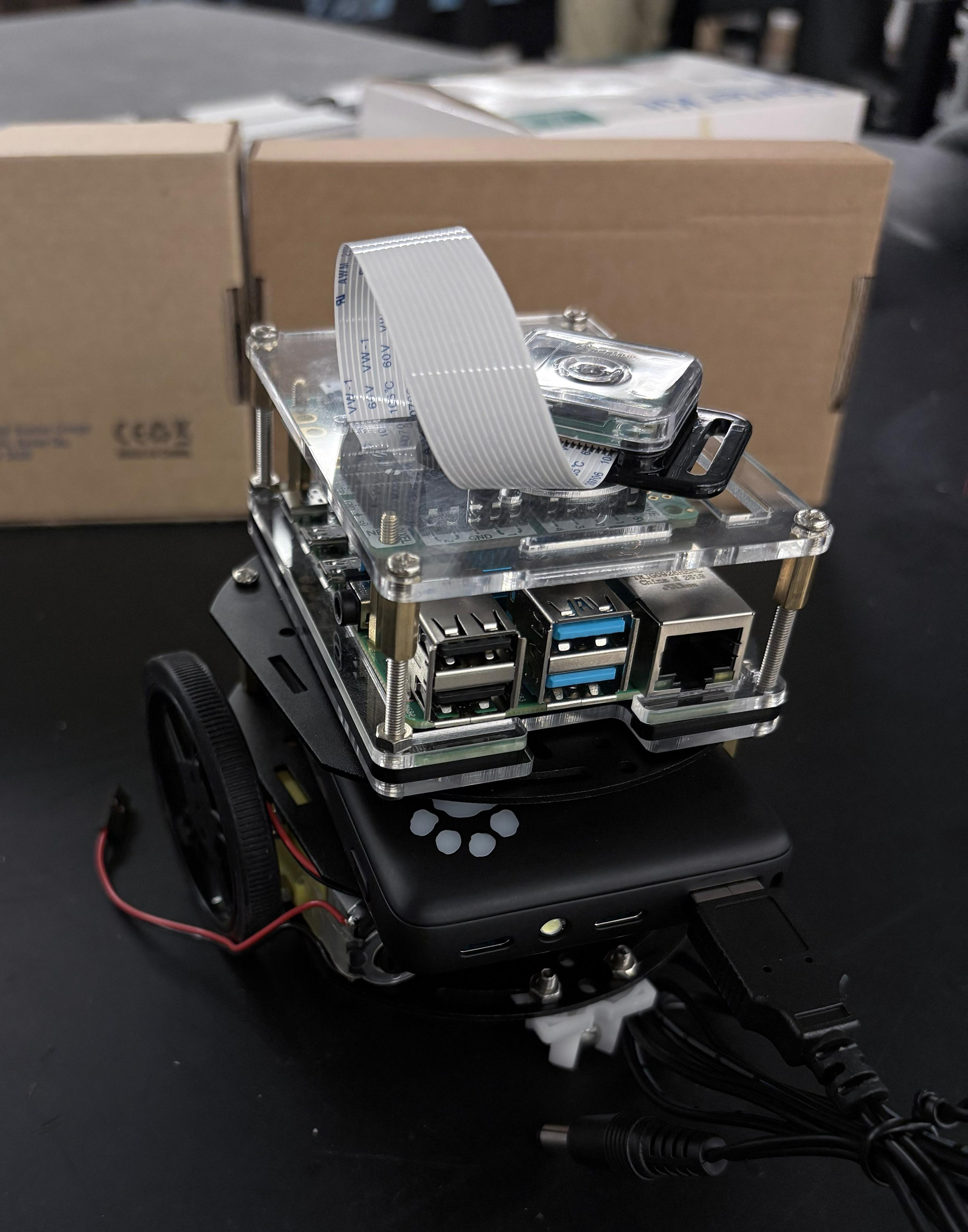

For my Industrial Automation class, my teammates Maxime Mobayed and Andres Permuy and I built a small vision-based inspection rover with web services.

This semester-long build took a Raspberry Pi rover from raw motor commands to a web-controlled robot that reacts to QR codes. Each assignment added a layer on top of the last: motor abstraction, remote execution, web services, an operator HMI, and vision-triggered behavior. I did nearly all the development, deployment, and debugging from the Linux command line.

1. Motor control layer

• Wrote a Python Robot class that drives two DC motors through an Adafruit Crickit HAT and exposes a single move(right, left, duration) interface.

• Built an argparse CLI for left/right throttle and duration.

• Input validation keeps throttle within ±0.9 and duration within 30 s, so a bad command can't send the rover off at full speed.

• Added per-direction sync coefficients to correct straight-line drift. Motors rarely match each other, and they often behave differently forward vs. reverse.

• Found and fixed a left/right argument swap between the CLI and the method signature.

2. Remote execution over SSH

• Packaged motion primitives (forward, backward, left, right, spin_left, spin_right) as a CLI script on the Pi.

• Wrote a host-side Python driver that uses subprocess to SSH into the Pi and run commands remotely, scripting full motion sequences from a separate machine.

• Debugged hostname targeting (mDNS .local resolution), interpreter paths across machines, and exit-status handling for failed remote calls.

3. Web service control

• Moved from SSH to an HTTP server running on the Pi (port 8888). Each motion command is a POST endpoint with JSON arguments.

• Wrote two client implementations:

  • A stateless client that opens a new urlopen connection per command.

  • A persistent HTTPConnection client that reuses one connection.

• Benchmarked the two over 100 round trips, which showed how much connection overhead costs in real-time teleoperation.

4. Operator HMI

• Built a browser-based control panel served from the Pi.

• It has one button per motion command plus a no-op, a live timestamp, and operator identification.

• Any device on the network can drive the rover without touching a terminal.

5. QR-triggered autonomy (final project)

• Integrated a live camera stream with QR code detection.

• Decoded codes feed into the same motion API, so the rover responds to visual markers.

• A file-watcher component links the vision pipeline to motion commands.

• The full pipeline ran successfully in the final demo.

6. Linux, bash, and systems work

• Did the development, deployment, and debugging almost entirely in bash, across an Ubuntu host and the Pi.

• Wrote shell scripts and one-liners for:

  • running and testing motion commands

  • checking hardware status registers

  • launching services with the right permissions and environment (sudo -E)

• Handled networking and access: SSH, mDNS hostnames, and direct Ethernet links between machines.

• Reflashed and reconfigured the OS when environment issues blocked progress.

7. Hardware pivot under deadline

• The GoPiGo3 board accepted motor commands (its status registers reported 100% power), but the motors never moved.

• After working through the JST pinout, power paths, and multimeter checks, we moved motor drive to an Arduino Uno with an L293D shield.

• The Pi sends plain-text commands (forward, backward, left, right, stop) over 9600-baud serial.

• Only the motor Python scripts needed rewriting. The HMI, web service, and QR pipeline stayed untouched.

Takeaways

• Layered abstractions paid off: the hardware swap cost one file instead of a rebuild.

• Fluency with the Linux command line (SSH, bash, permissions, networking) mattered as much as the robotics.

• Moving from SSH to HTTP made it clear how transport choice shapes latency and usability.

Stack: Raspberry Pi · Linux/bash · Python · SSH · HTTP/JSON web services · HTML HMI · QR detection · Arduino (L293D) · serial comms
